Forum Energy Technologies (FET) are a world leading designer and manufacturer of subsea systems and have been reliably supporting military organisations and naval forces for more than 45 years. FET have supplied over 900 manned and unmanned underwater vehicles. NSRS (NATO Submarine Rescue System) which entered service in 2008 and “remains the benchmark” . The latest SRV system (LR11) was delivered in 2021 for the Vietnamese Navy and The system was supplied with a Launch & Recovery System and a complete training & aftersales support package as well as an ROV System, FET’s operational base in the UK operates Europe’s most advanced subsea design, manufacturing and vehicle testing facility.
_Page_1.png)

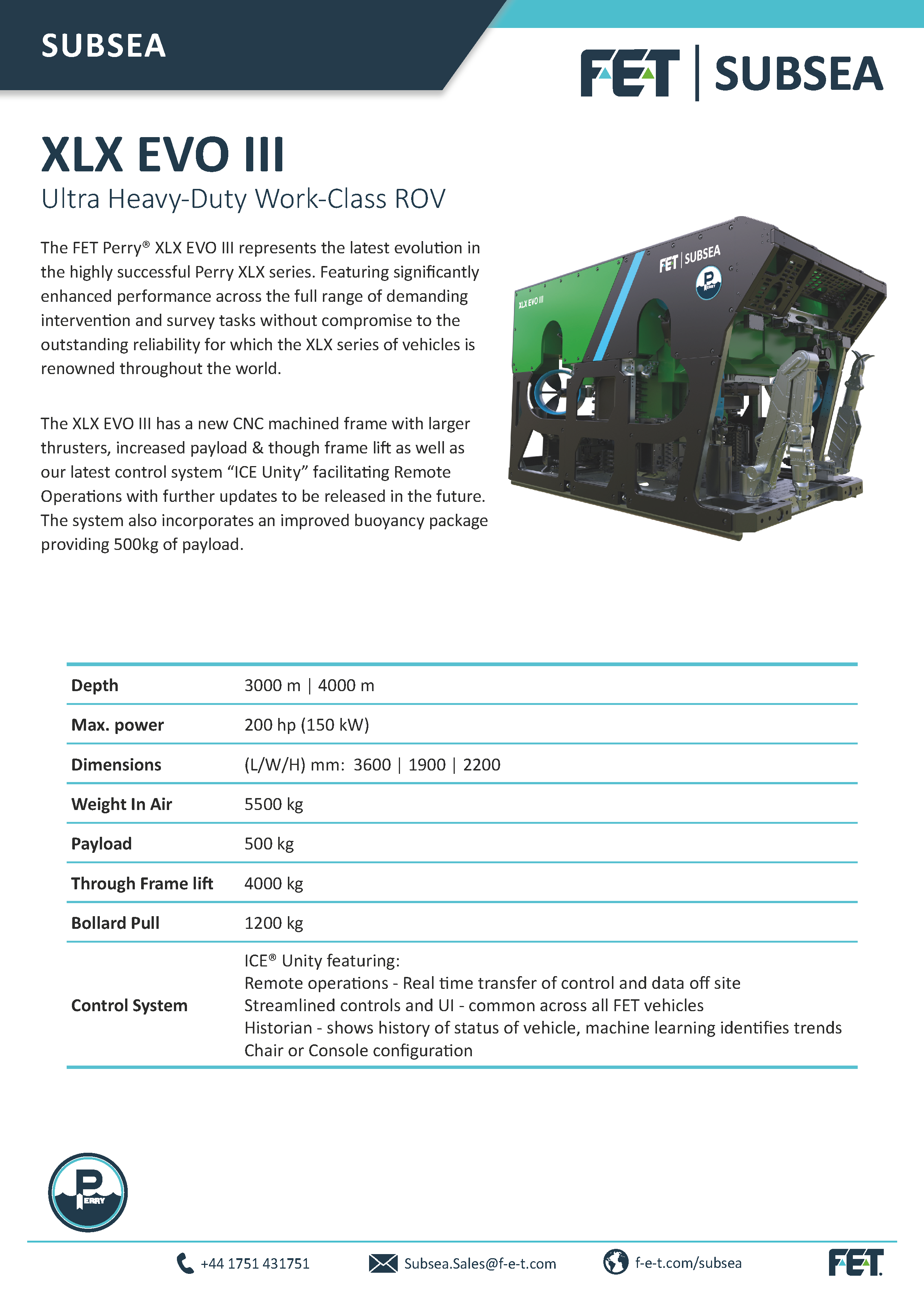

XLX EVO III Ultra Heavy-Duty Work-Class ROV The FET Perry® XLX EVO III represents the latest evolution in the highly successful Perry XLX series. Featuring significantly enhanced performance across the full range of demanding intervention and survey tasks without compromise to the outstanding reliability for which the XLX series of vehicles is renowned throughout the world. The XLX EVO III has a new CNC machined frame with larger thrusters, increased payload & though frame lift as well as our latest control system “ICE Unity” facilitating Remote Operations with further updates to be released in the future. The system also incorporates an improved buoyancy package providing 500kg of payload.

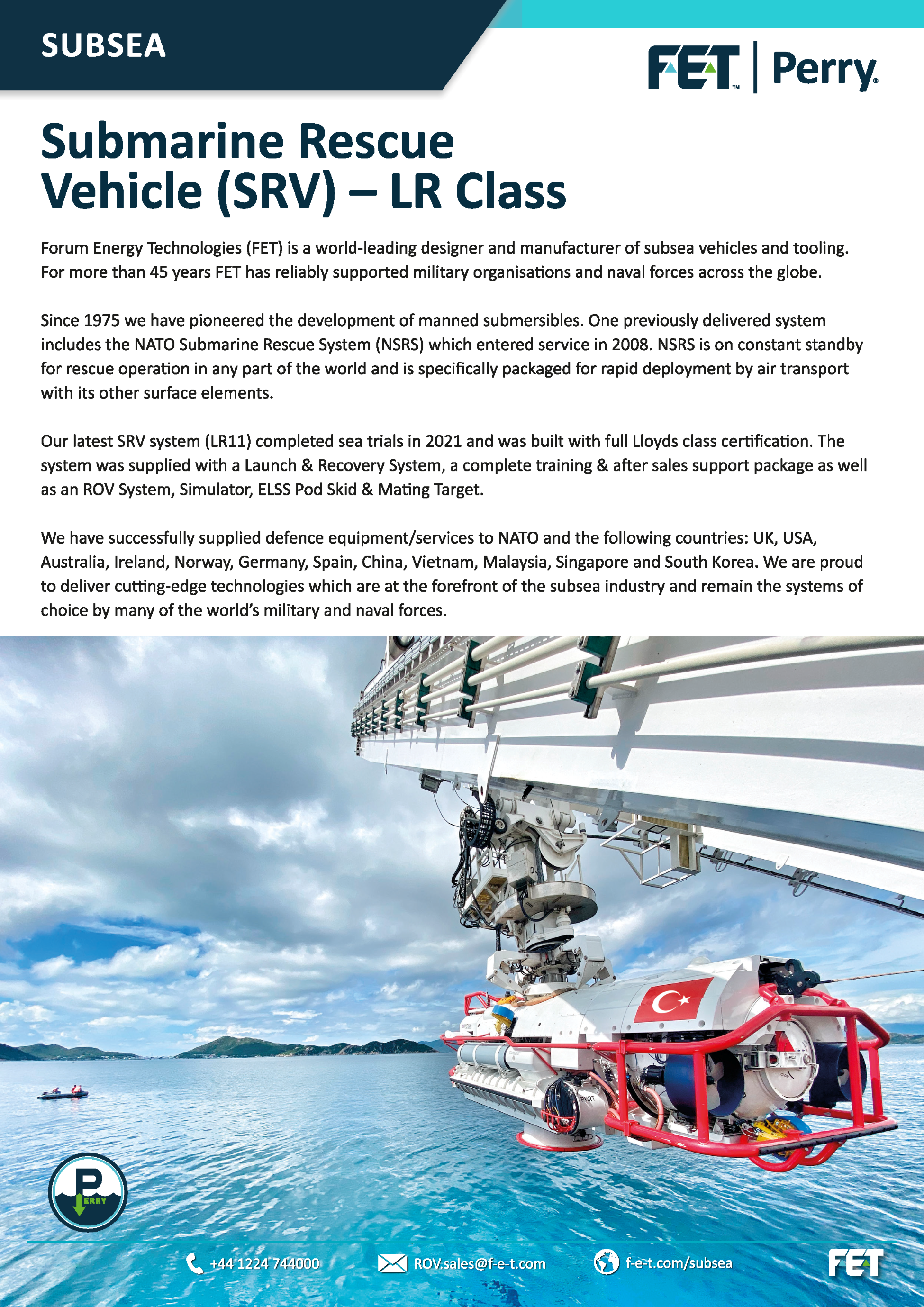

Submarine Rescue Vehicle (SRV) – LR Class Forum Energy Technologies FET is a world-leading designer and manufacturer of subsea vehicles and tooling. For more than 45 years FET has reliably supported military organisations and naval forces across the globe. Since 1975 we have pioneered the development of manned submersibles. One previously delivered system includes the NATO Submarine Rescue System (NSRS) which entered service in 2008. Our latest SRV system (LR11) completed sea trials in 2021 and was built with full Lloyds class certification. The system was supplied with a Launch & Recovery System, a complete training & after sales support package as well as an ROV System, Simulator, ELSS Pod Skid & Mating Target.

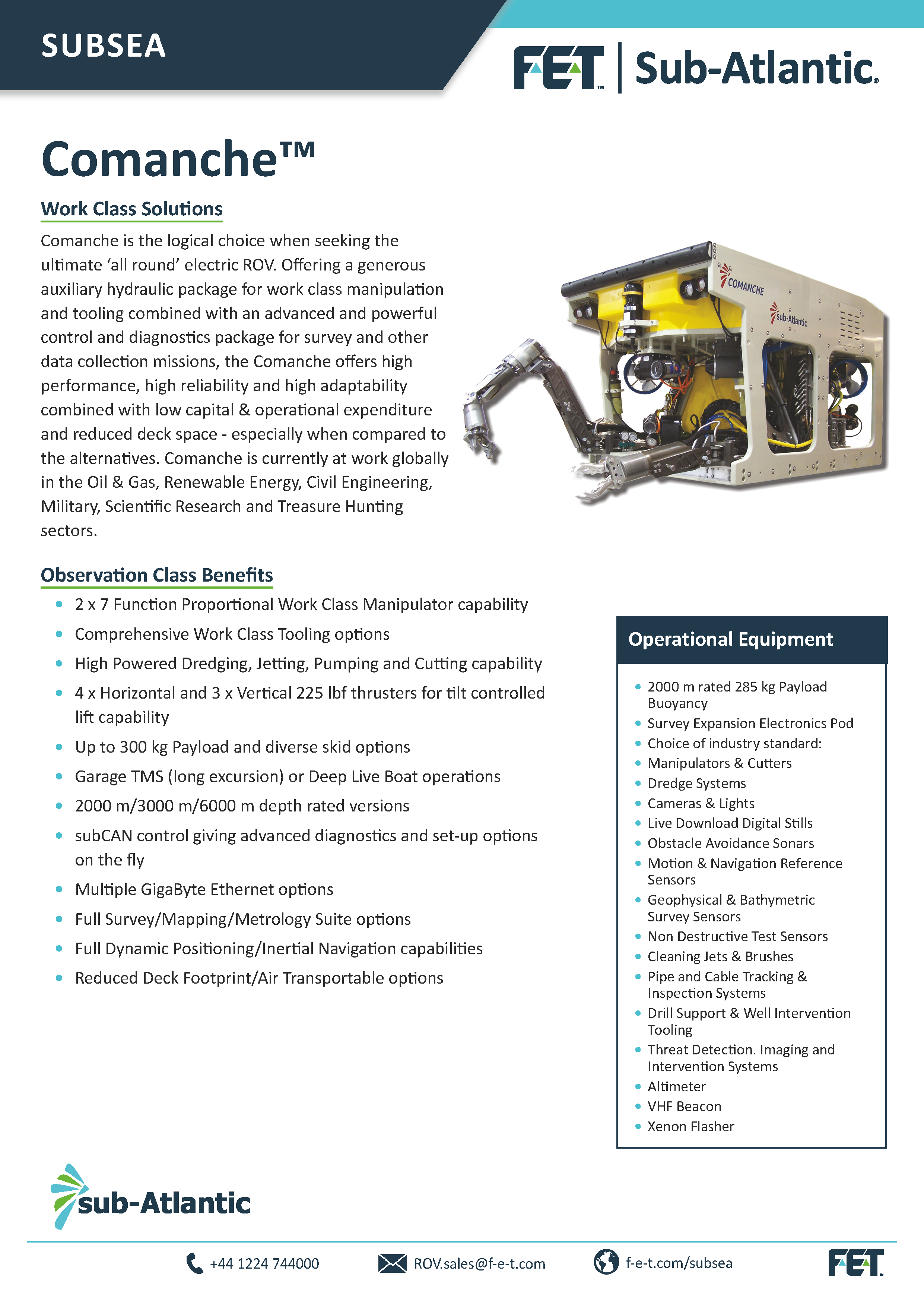

Comanche™ Work Class Solutions Comanche is the logical choice when seeking the ultimate ‘all round’ electric ROV. Offering a generous auxiliary hydraulic package for work class manipulation and tooling combined with an advanced and powerful control and diagnostics package for survey and other data collection missions, the Comanche offers high performance, high reliability and high adaptability combined with low capital & operational expenditure and reduced deck space - especially when compared to the alternatives. Comanche is currently at work globally in the Oil & Gas, Renewable Energy, Civil Engineering, Military, Scientific Research and Treasure Hunting sectors.

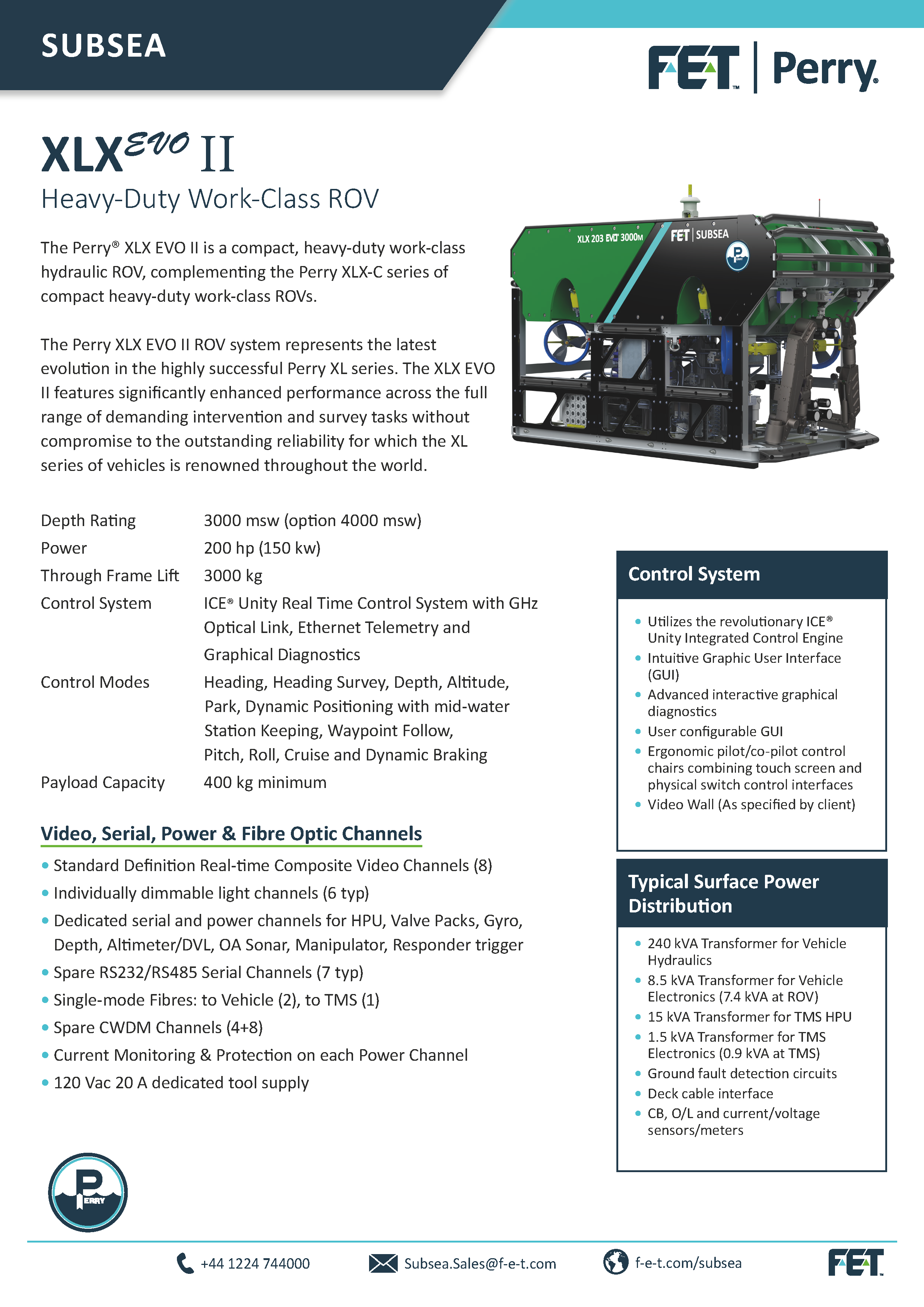

The Perry® XLX EVO II is a compact, heavy-duty work-class hydraulic ROV, complementing the Perry XLX-C series of compact heavy-duty work-class ROVs. The Perry XLX EVO II ROV system represents the latest evolution in the highly successful Perry XL series. The XLX EVO II features significantly enhanced performance across the full range of demanding intervention and survey tasks without compromise to the outstanding reliability for which the XL series of vehicles is renowned throughout the world.

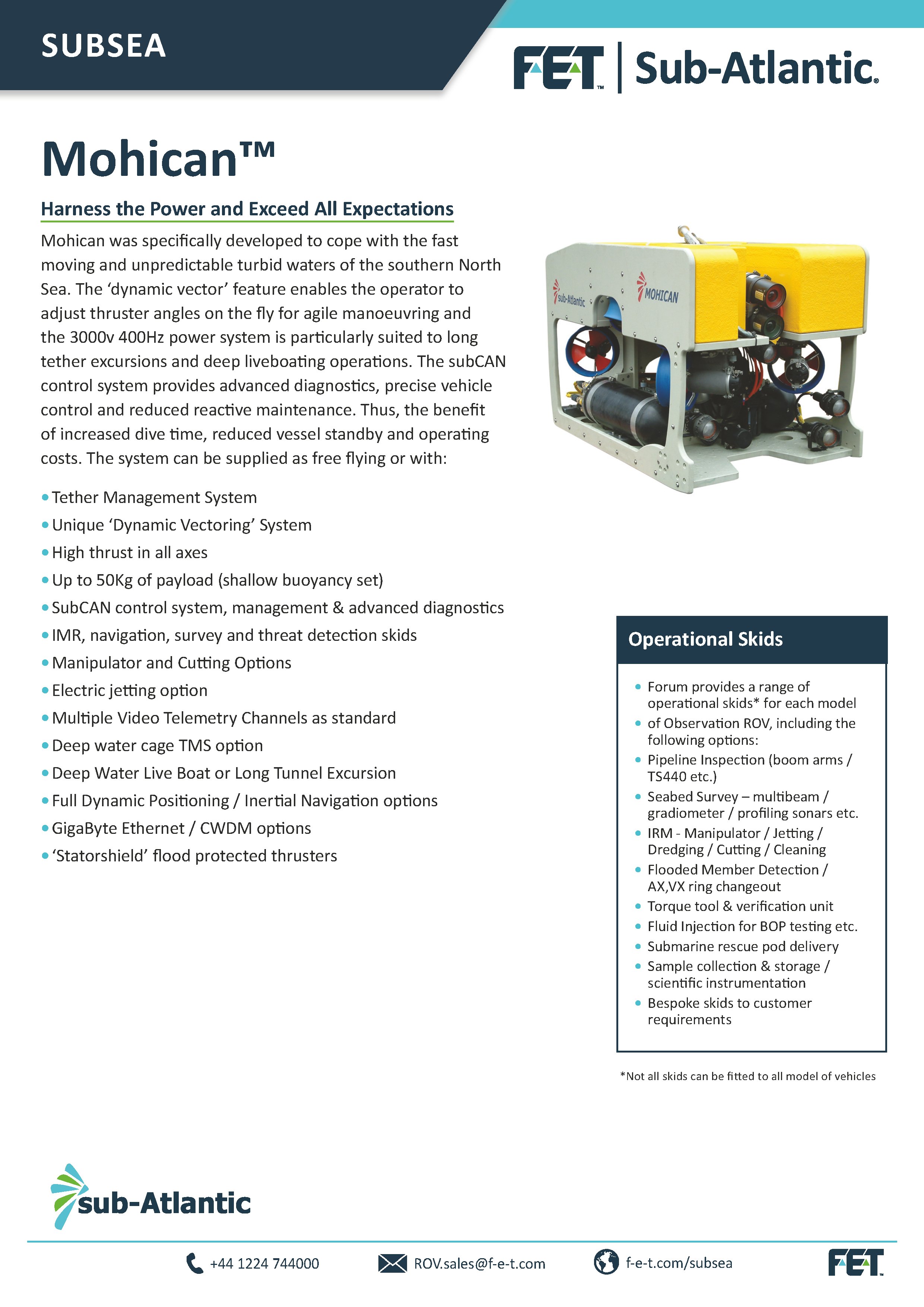

Mohican™ Harness the Power and Exceed All Expectat ions Mohican was specifically developed to cope with the fast moving and unpredictable turbid waters of the southern North Sea. The ‘dynamic vector’ feature enables the operator to adjust thruster angles on the fly for agile manoeuvring and the 3000v 400Hz power system is particularly suited to long tether excursions and deep liveboating operations. The subCAN control system provides advanced diagnostics, precise vehicle control and reduced reactive maintenance. Thus, the benefit of increased dive time, reduced vessel standby and operating costs.

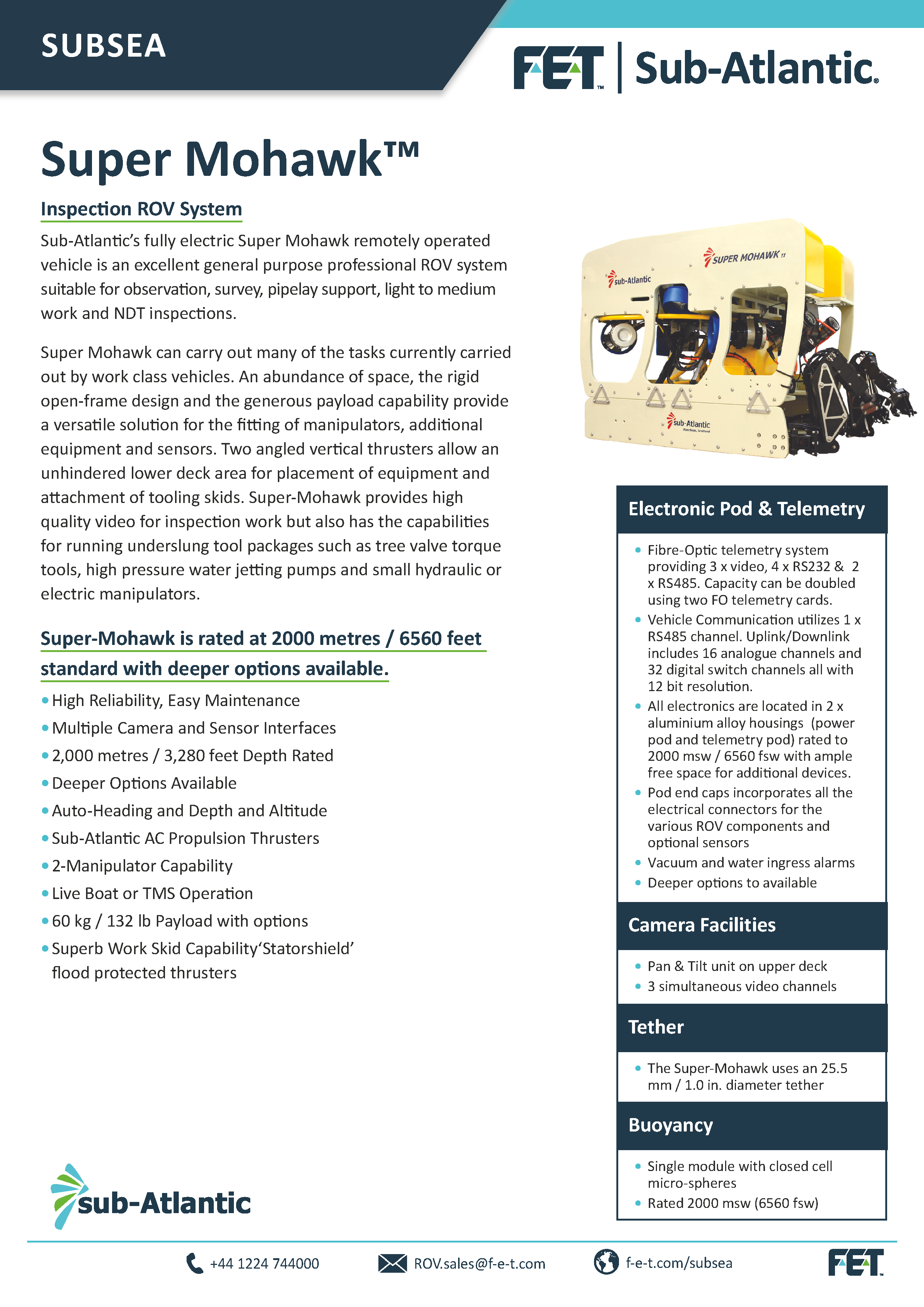

Fully electric Super Mohawk is an excellent general purpose ROV system suitable for observation, survey, pipelay support, light to medium work and NDT inspections. It can carry out many of the tasks. An abundance of space, the rigid open-frame design and the generous payload capability provide a versatile solution for the fitting of manipulators, additional equipment and sensors. Two angled vertical thrusters allow an unhindered lower deck area for placement of equipment and attachment of tooling skids. Super-Mohawk provides high quality video for inspection work but also has the capabilities for running underslung tool packages such as tree valve torque tools, high pressure water jetting pumps and small hydraulic or electric manipulators.

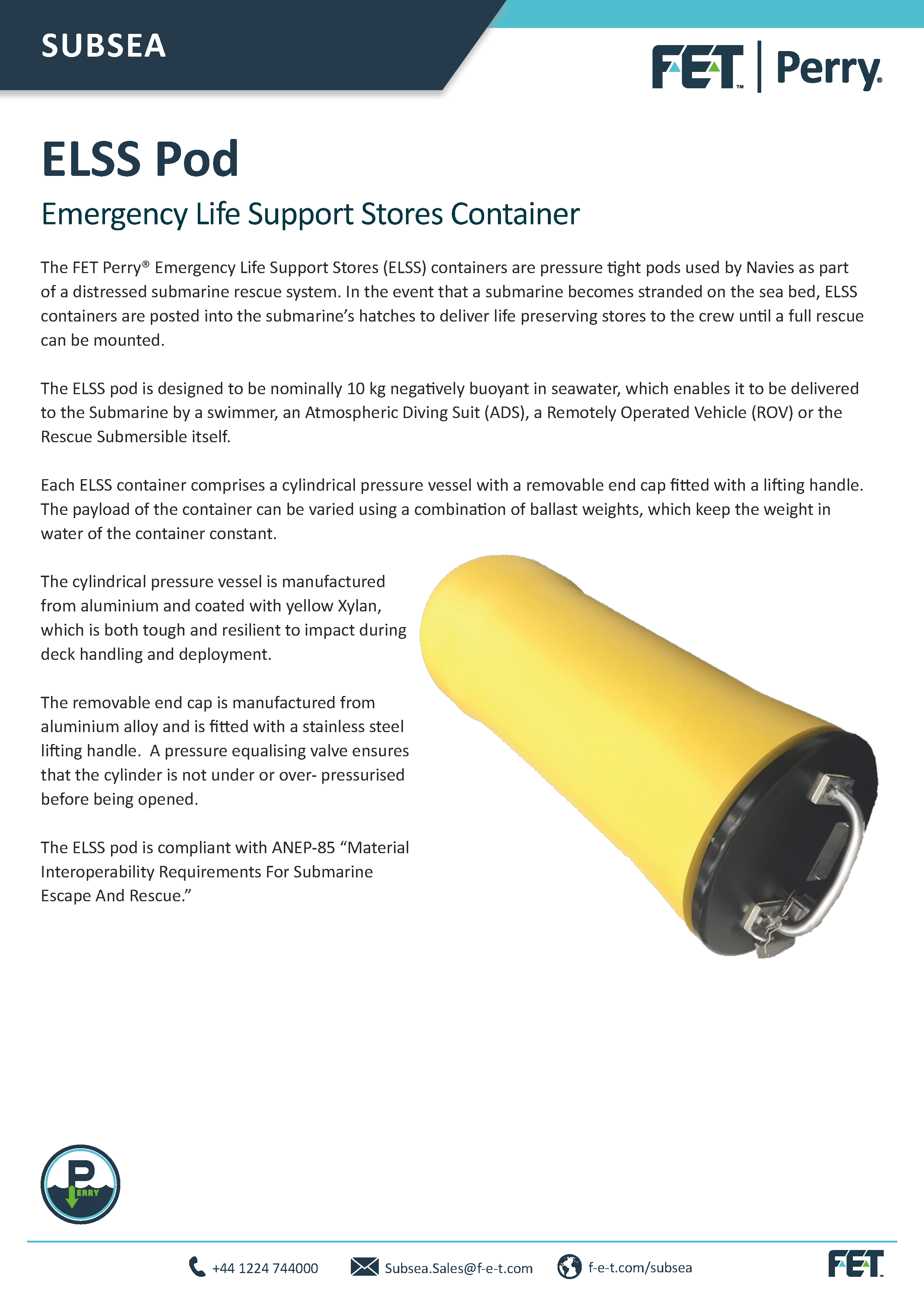

ELSS POD, A system that provides the transportation of medical, technical and food materials that the personnel will need on a submarine in distress. The ELSS pod is designed to have a nominal negative buoyancy of 10 kg in sea water, which allows it to be delivered to the submarine by a swimmer, Atmospheric Diving Suit (ADS), Remotely Operated Vehicle (ROV) or Rescue Diver himself. Each ELSS container consists of a cylindrical pressure vessel with a removable end cap equipped with a lifting handle. The load of the container can be changed using a combination of ballast weights that keep the weight of the container in the water constant.

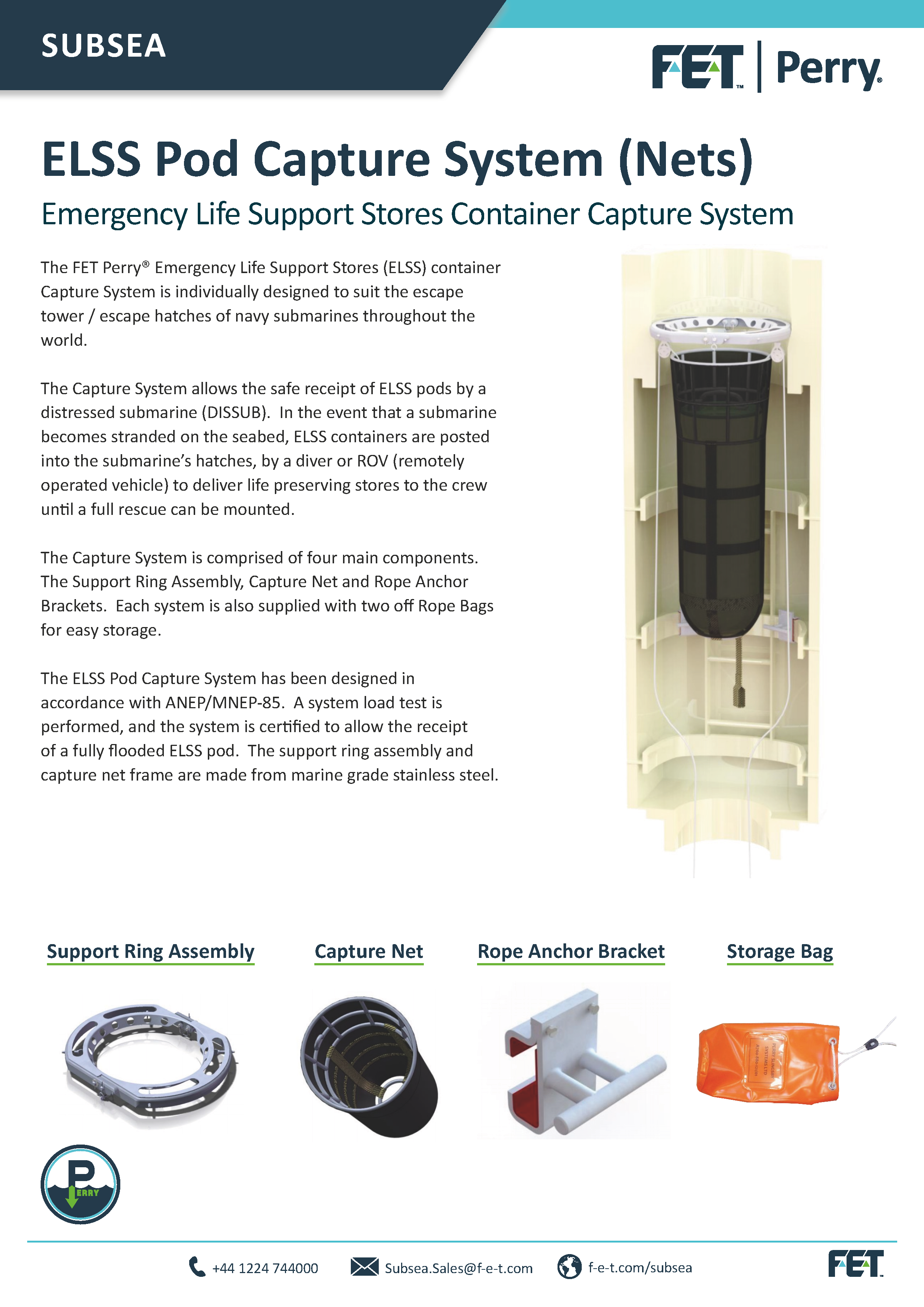

ELSS Pod Capture System (Nets) The FET Perry® Emergency Life Support Stores (ELSS) container Capture System is individually designed to suit the escape tower / escape hatches of navy submarines throughout the world. The Capture System allows the safe receipt of ELSS pods by a distressed submarine (DISSUB). In the event that a submarine becomes stranded on the seabed, ELSS containers are posted into the submarine’s hatches, by a diver or ROV (remotely operated vehicle) to deliver life preserving stores to the crew until a full rescue can be mounted. The Capture System is comprised of four main components.

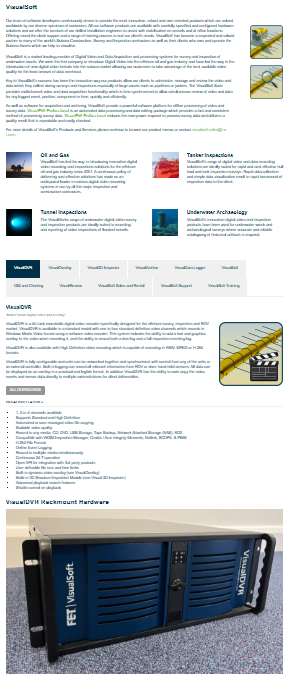

VisualSoft is a market leading provider of Digital Video and Data Acquisition and processing systems for survey and inspection of underwater assets. We were the first company to introduce Digital Video into the offshore oil and gas industry and have led the way in the introduction of new digital video formats into the subsea market allowing our customers to take advantage of the best available video quality for the least amount of data overhead. The VisualSoft Suite provides multichannel video and data acquisition functionality which is time synchronized to allow simultaneous review of video and data for any logged event, position, component or time, quickly and efficiently.

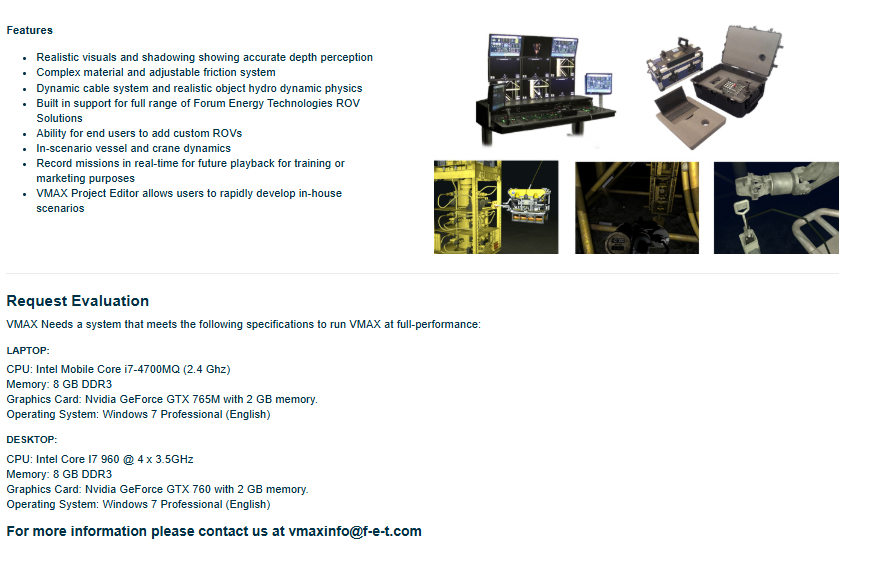

Vmax Project simulator is an all-encompassing simulation solution for the offshore industry, used to develop various simulation applications. Providing a standard functionality for any ROV equipment, VMAX allows accurate simulation of the equipment in a subsea environment and has been used by operators, service companies, and engineering firms to run simulations of complex situations. ROV operators validate engineering designs with procedures for on-site rehearsal and instant feedback, prior to Systems Testing. VMAX ROV Simulator is provided with a library of standard training scenarios, each designed to train and evaluate ROV pilots in basic and complex skills such as tether management, access evaluation, and manipulator control.

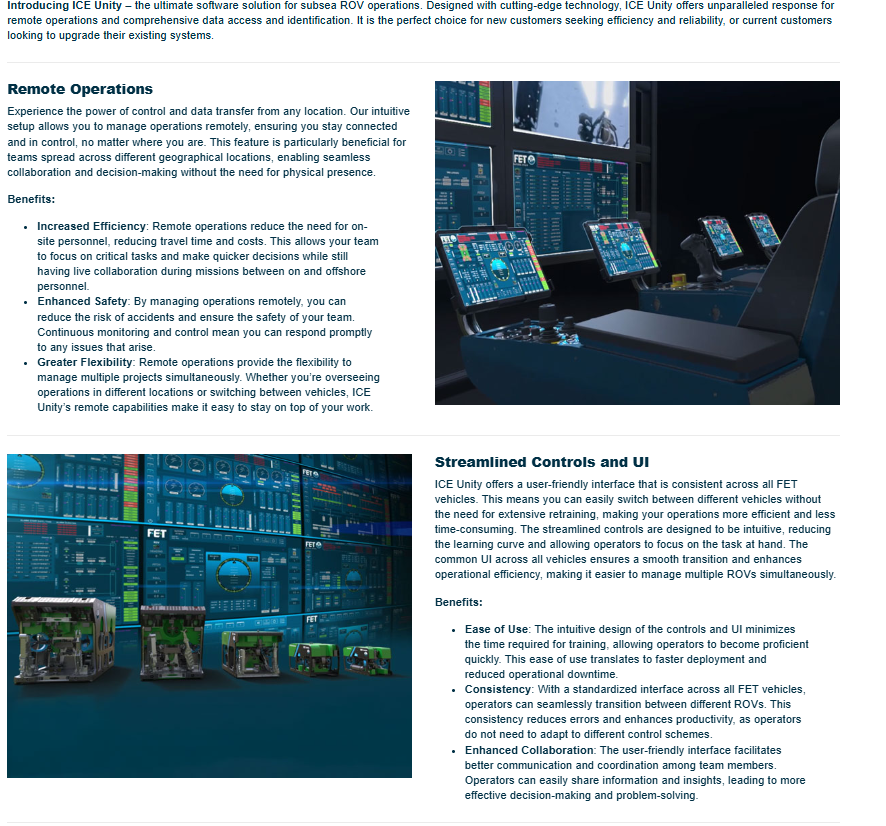

ICE Unity Introducing ICE Unity – the ultimate software solution for subsea ROV operations. Designed with cutting-edge technology, ICE Unity offers unparalleled response for remote operations and comprehensive data access and identification. It is the perfect choice for new customers seeking efficiency and reliability, or current customers looking to upgrade their existing systems.

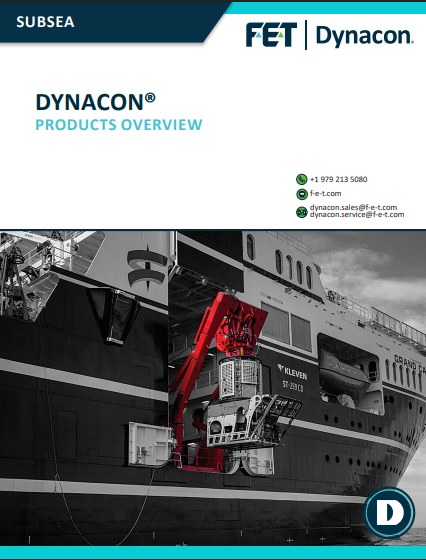

Dynacon Launch and Recovery Systems (LARS) We can modify our LARS to suit a variety of ROV launch and recovery specifications for our clients. Our product line includes a variety of products such as winches, umbilical handling systems, and levelwinds. We also offer ROV launch and recovery systems, autonomous launch and recovery systems, cable engines, and overboarding sheaves. Additionally, we provide hydraulic power systems and other related products. We have electric drum winches for ocean research, as well as hydraulic winch systems with cranes for deep-sea operations. These tools retrieve ROVs, towed objects, ocean instruments, AUVs, and other equipment from the ocean.
It is a catalogue that includes sub-equipment of ROV and other underwater systems and that can be rented or purchased when necessary. Details of the catalogue can be accessed at https://f-e-t.com/subsea/rov-tooling-and-components/tooling/.

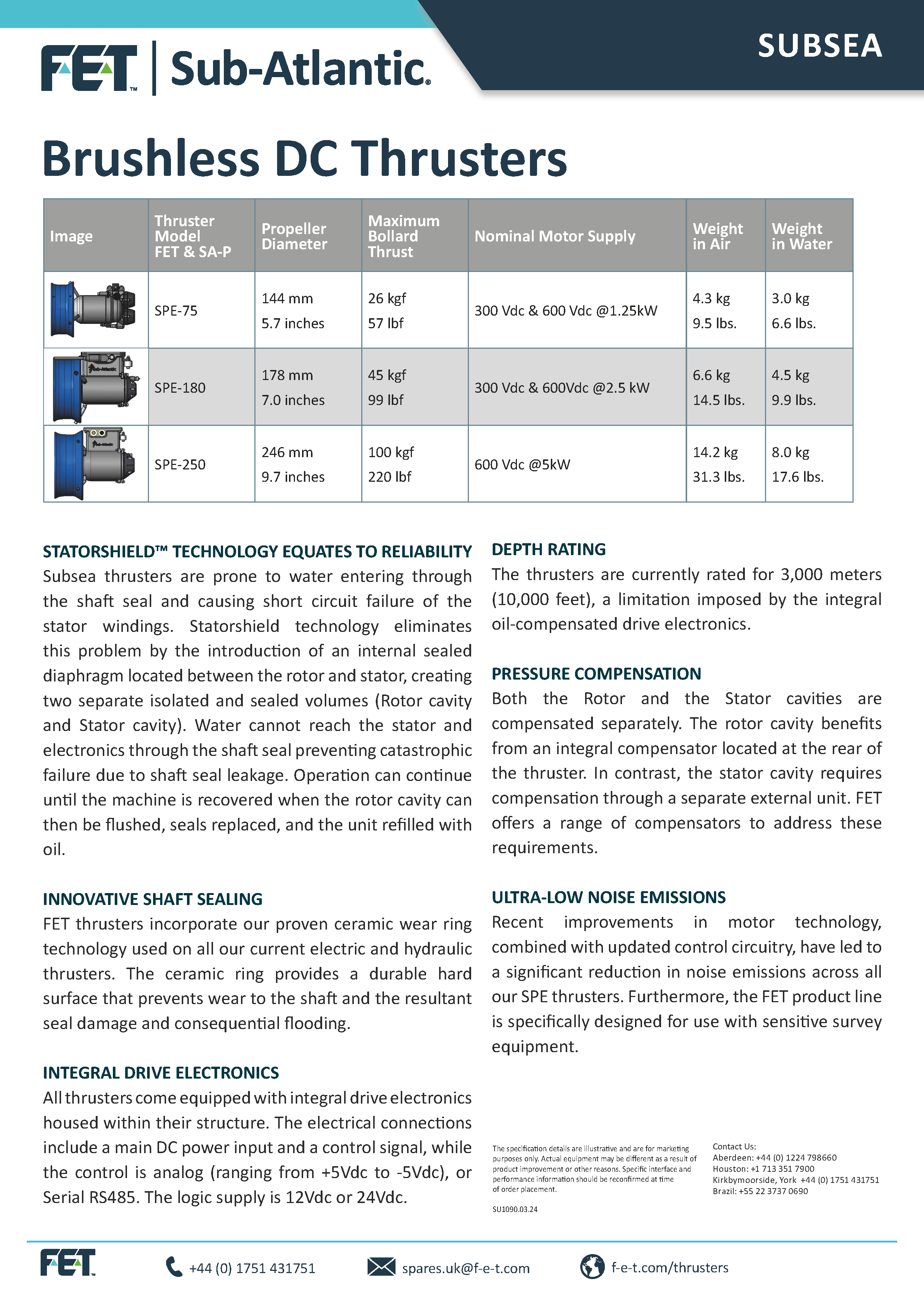

Brushless DC Thrusters FET’s Sub-Atlantic product line offers a comprehensive selection of brushless DC thrusters. These thrusters have been successfully integrated into Sub-Atlantic observation and light work class ROVs for nearly two decades, earning a reputation for reliability, longevity, and flexibility. FET continues to collaborate with multiple third-party ROV manufacturers, ensuring seamless integration of the SPE thruster range into their vehicle builds. Furthermore, FET remains committed to ongoing development and enhancement of this product in the years to come. Whether for research, exploration, or industry applications, Sub-Atlantic thrusters are the optimal choice for underwater operations.

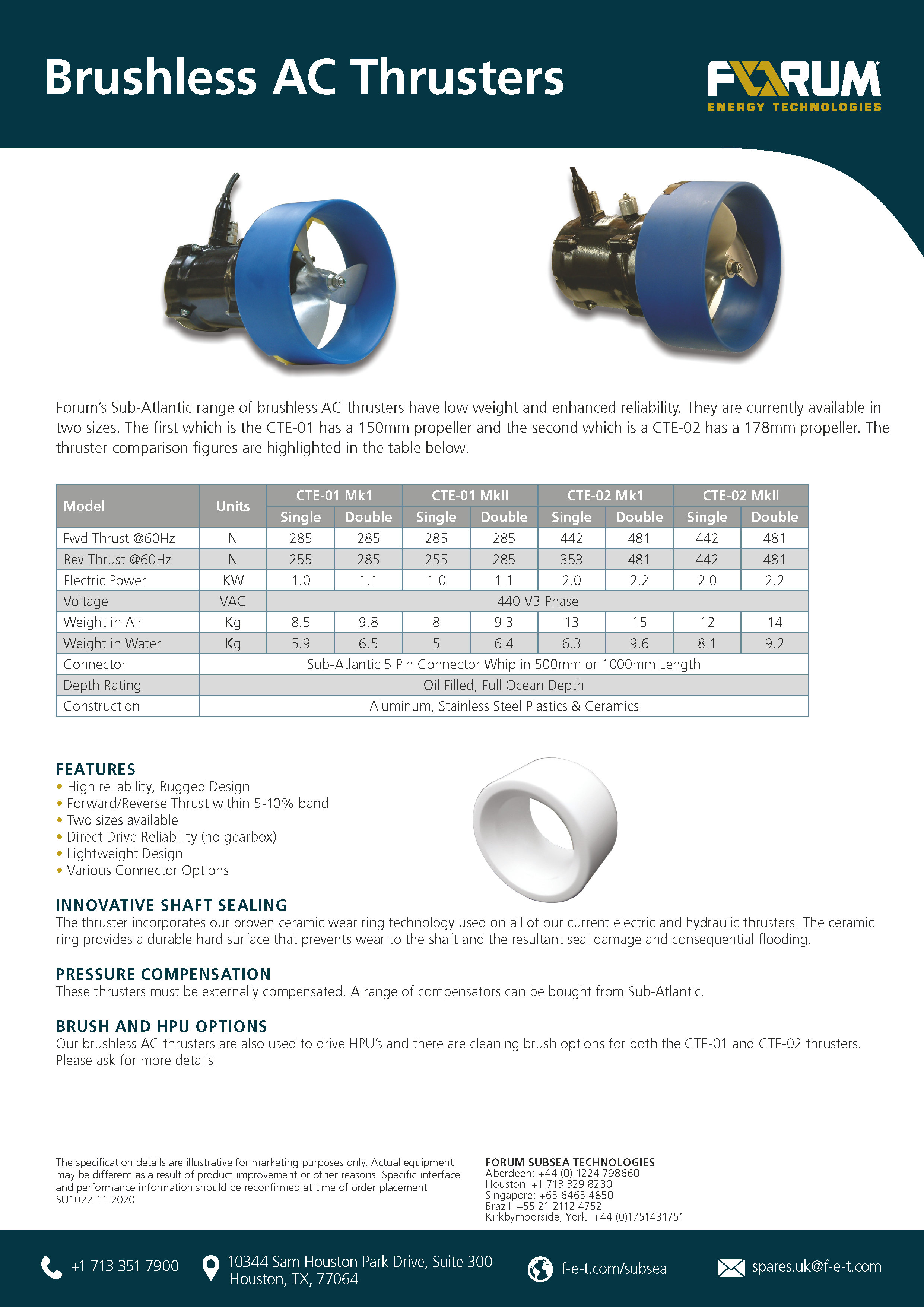

Forum’s Sub-Atlantic range of brushless AC thrusters have low weight and enhanced reliability. They are currently available in two sizes. The first which is the CTE-01 has a 150mm propeller and the second which is a CTE-02 has a 178mm propeller. The thruster comparison figures are highlighted in the table below
